Double Stud Anchor Plate Kit with Pear Ring - 2.5" Fastener

This anchor plate assembly sets you up with a robust tie-down location that doesn't need adjustment. With a sleek, finished look, this assembly is precision-milled using the same wide and smooth profile of our Series 3 VersaTie track and has been tested to 5,000 lb. Minimum Break Strength (MBS) in vertical pull.

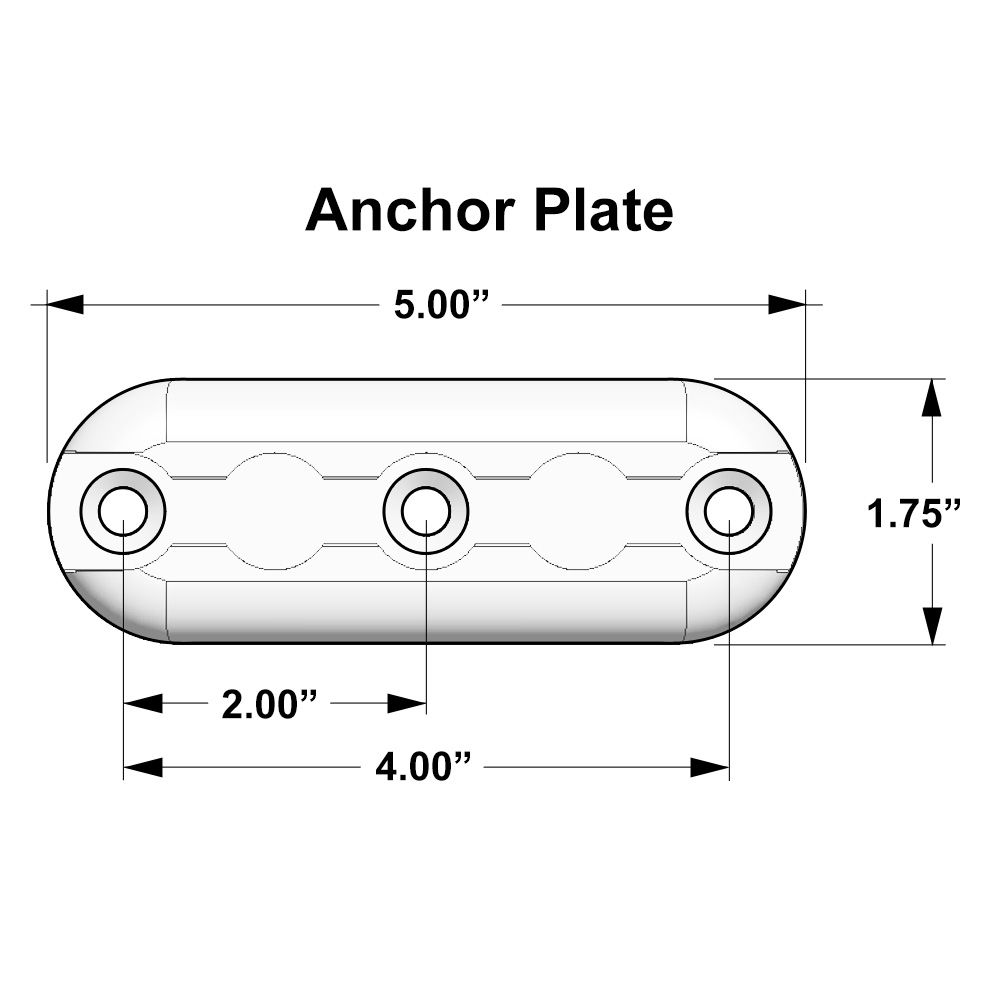

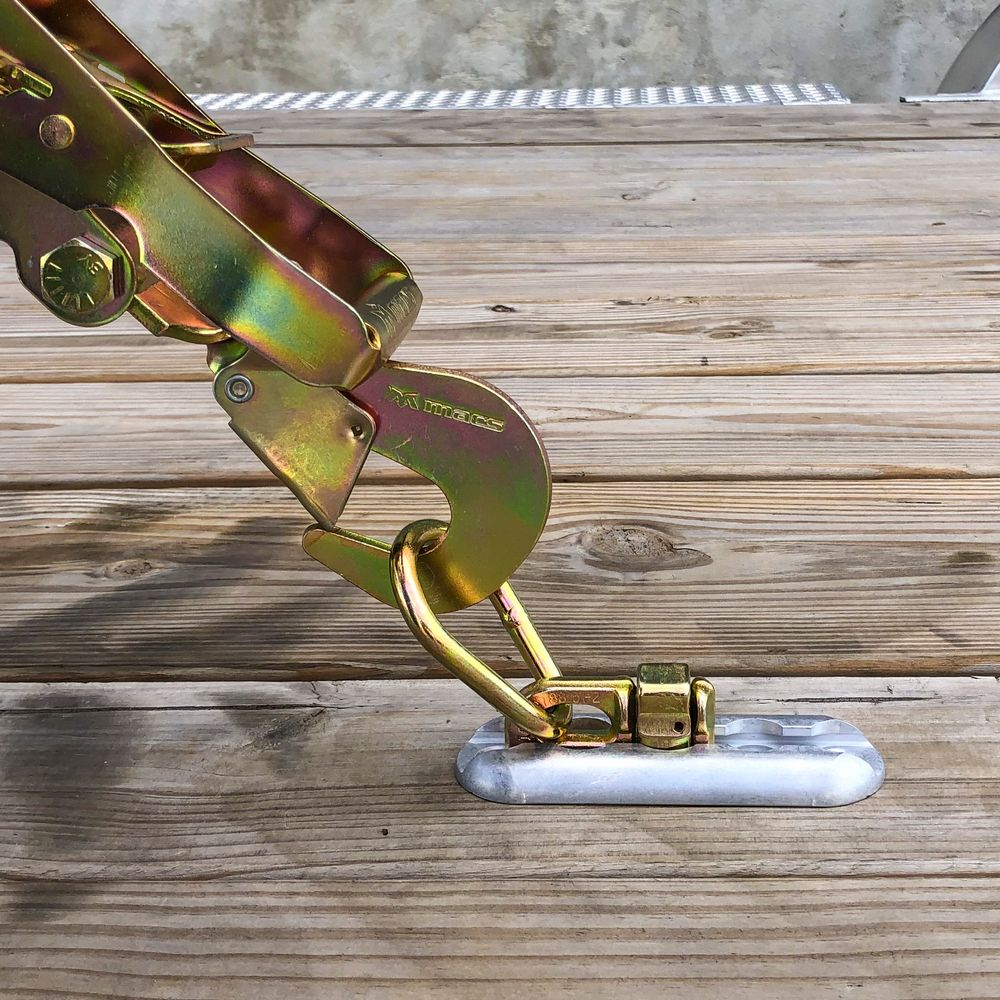

When the fitting is removed, the anchor plate is smooth and unobtrusive; particularly beneficial for multi-use trailers. When not using for hauling a vehicle, you can even add multiple VT-1000 Single Stud Tie-Down Rings for additional hard points to secure various cargo. It's pre-drilled with three countersunk holes, and installation is easy once matching holes are drilled into the main structure. The pear-shaped rings provide an easy attachment point for use with our ratchet or other type of hook.

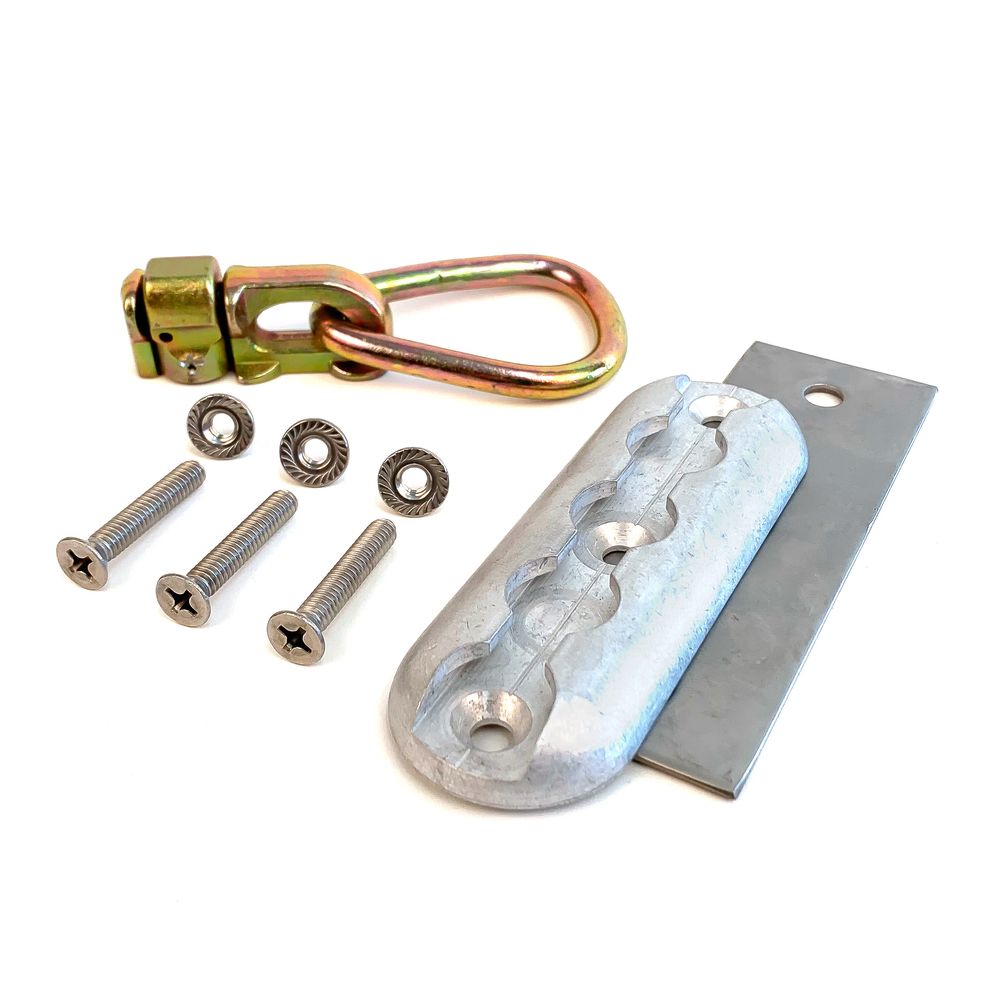

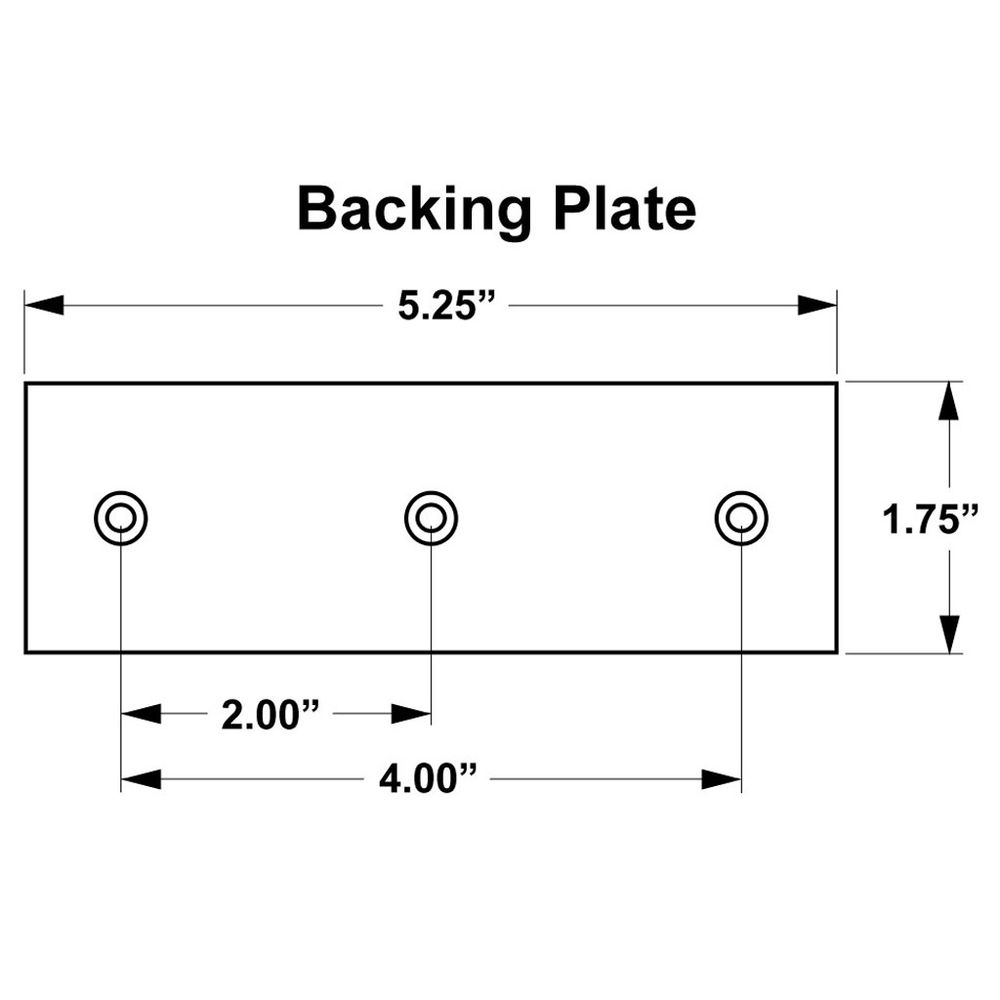

The assembly includes one double stud anchor plate, one backing plate, one pear-shaped tie-down ring and three 1/4" stainless steel machine screws with whiz nuts. For long-lasting performance, the anchor plate is manufactured from aircraft-grade aluminum. The mild steel backing plate is zinc-dipped to inhibit corrosion. Stainless steel screws and self-locking whiz nuts are provided to attach the assembly to your structure to ensure years of trouble-free service.
