L-Track Single Stud Fitting with Round Ring - Blue - WLL 1,333 lb.
$5.90
MSRP
Key Features:
- Single stud for L-track use
- 1,333 lb. Vertical pull WLL; 1,000 lb. 45 degree/horizontal pull WLL
Our
Guarantee
Guarantee
Against defects in workmanship and materials.
Made to Order
In Huntley, IL
In Huntley, IL
Every product is hand-stitched and/or assembled in the Midwest.
Heavy-Duty
Stitching
Stitching
Heavy-duty stitch patterns ensure maximum tear resistance.
Premium
Quality
Quality
Superior strap material for better UV resistance and chafe protection over "standard" straps.
Overview
Overview
Specifications
Work Load Limit:
1,000 lbs.
Material:
Stainless Steel
End Fitting:
L-Track Single Stud w/Round Ring
More Information

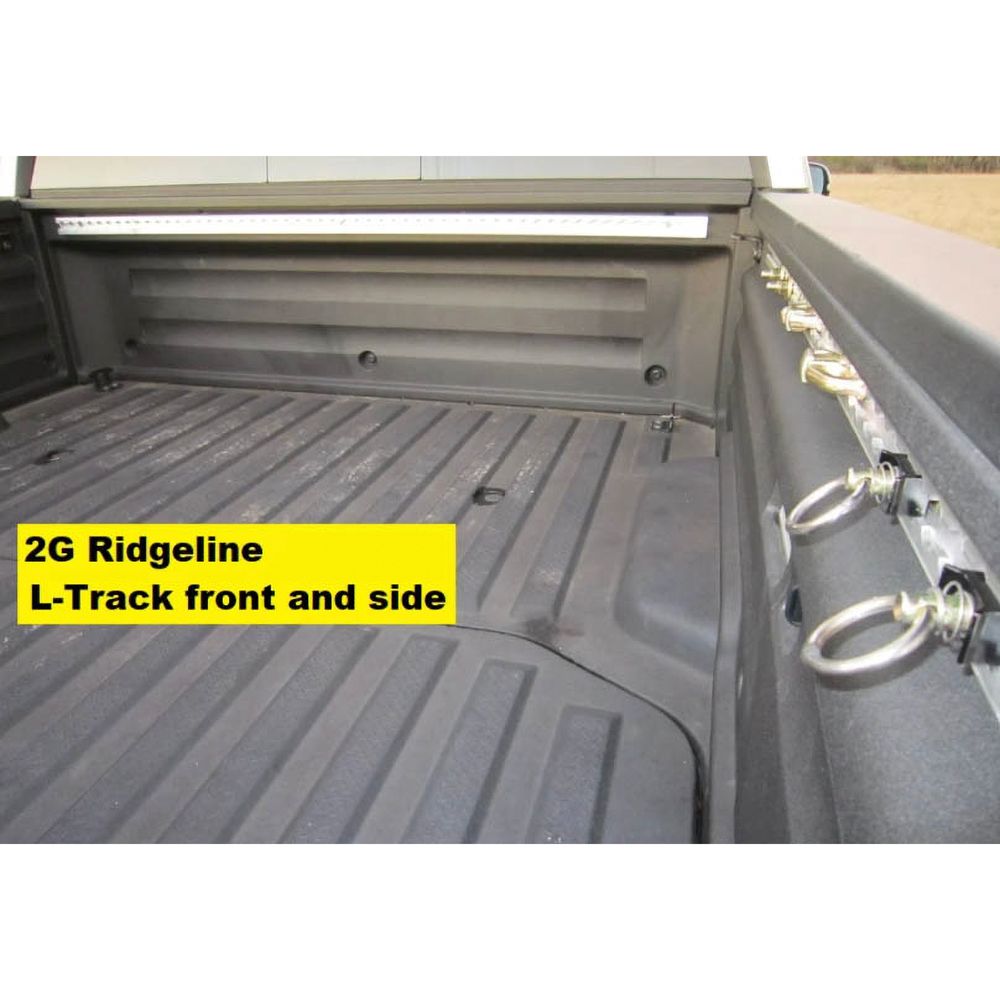

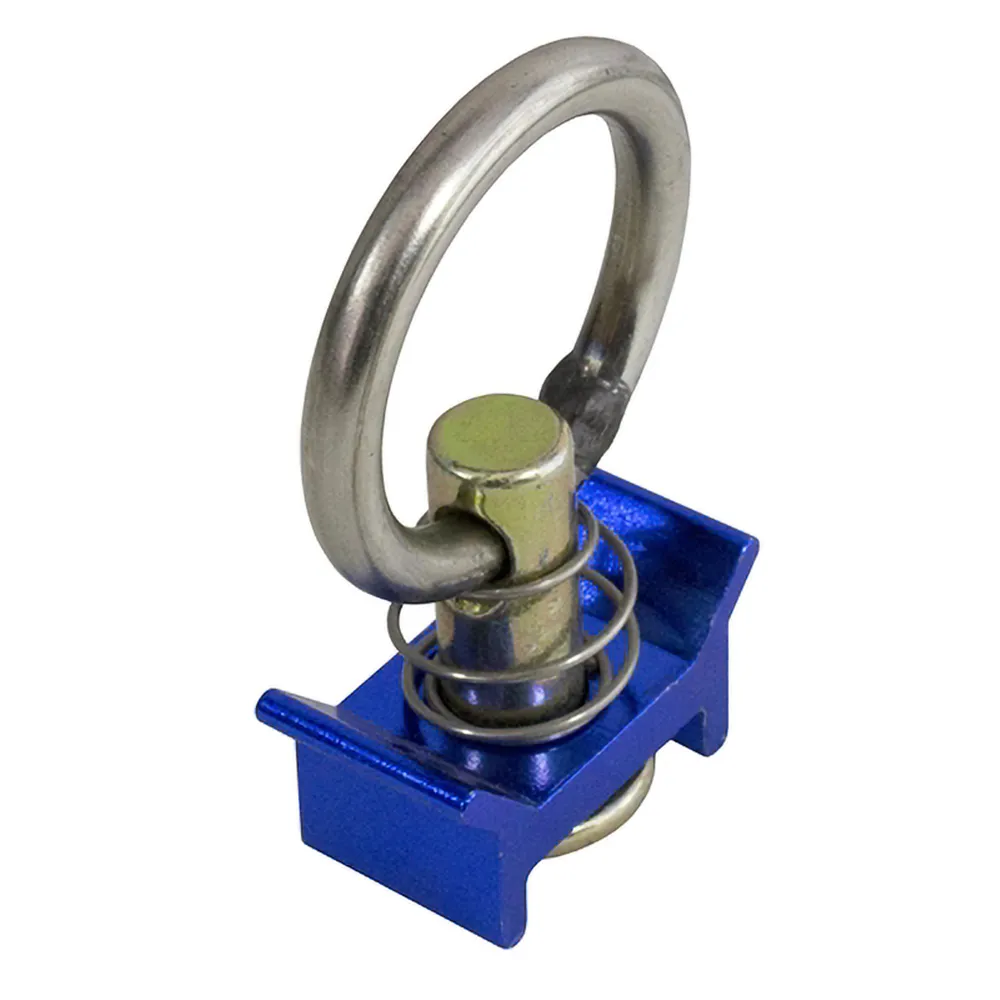

Stainless steel L-track single stud fitting with round ring. One of the strongest fittings available for use with heavy-duty aircraft grade L-track. The ring is made of stainless steel while the body is aluminum. Perfect for wet or marine environment and less likely to rust. Used in L-Track applications.
Working Load Limits are as follows: 0 deg Vertical Pull Angle is: 1,333 lbs (605 kgs); 45 deg Pull Angle is 1,000 lbs (455 kgs); 90 deg Horizontal Pull Angle is 1,000 lbs (455 kgs).
- Single stud for L-track use
- 1,333 lb. Vertical pull WLL; 1,000 lb. 45 degree/horizontal pull WLL
